iOptron

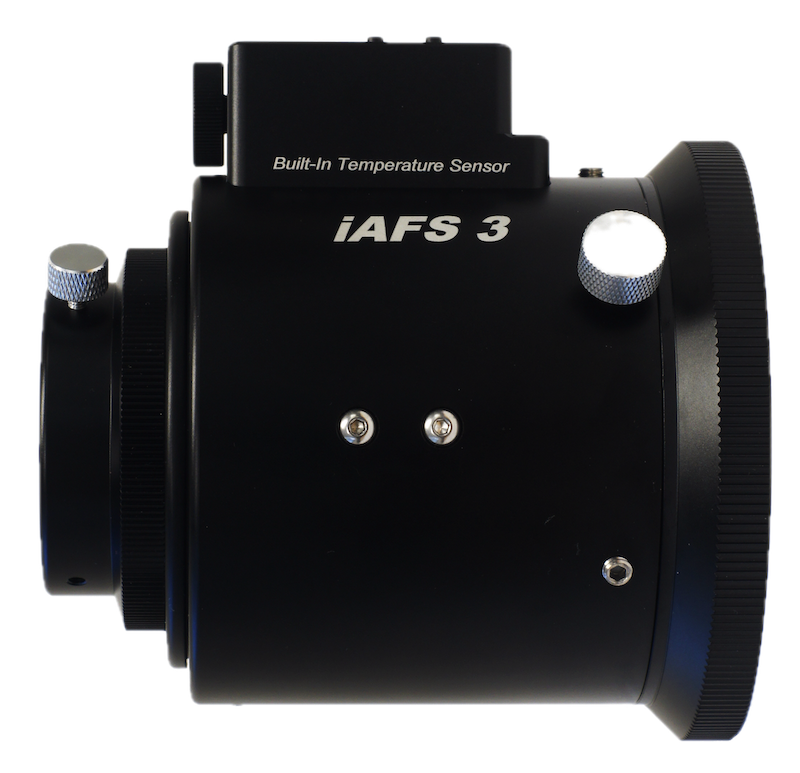

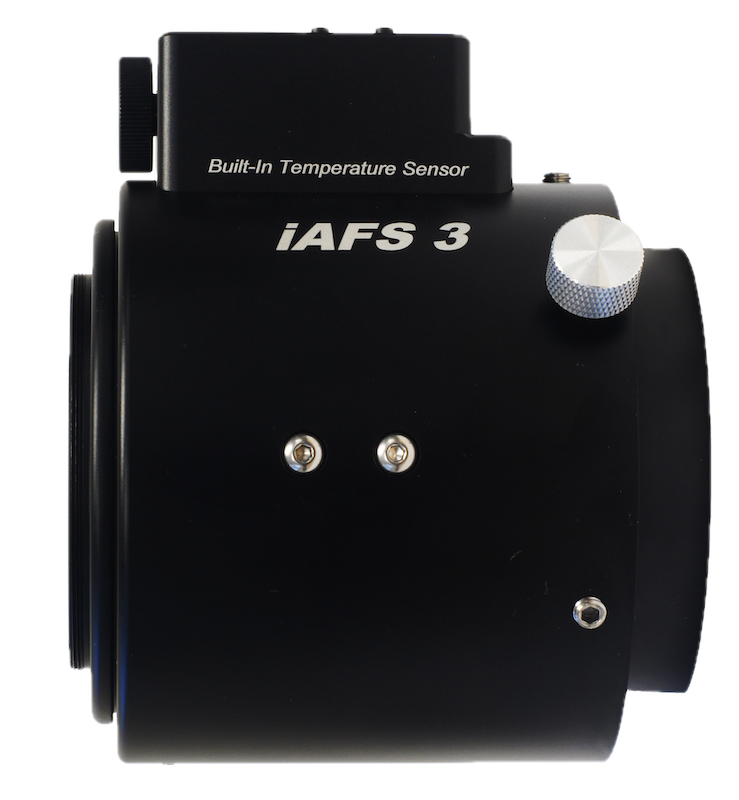

Electronic Inline Automatic Focuser with iLock 3"
Electronic Inline Automatic Focuser with iLock 3"
Couldn't load pickup availability
Introducing the most versatile inline focuser available, the iOptron iAFS™ focuser with iLock™ technology. Utilising a lead worm movement is the key to the iAFS focusers patented design; this passive position locking system secures most any payload
(imaging train) at the stopped position, maintaining focus even as the instrument angle is changed.
The iAFS incorporates three focus modes;
- USB (computer control)
- on board directional buttons (for powered manual adjustments)
- a manual focus wheel
Other features include a built-in temperature sensor, multiple USB-C ports, solid all metal body, fingerprint resistant exterior surface, 0.6 micron movement resolution, position limiters to prevent over runs.
It come standard with a three inch visual back and optional telescope adapters to fit various OTAs are available. Contact us for more information on adapters.
Features
• Built-in temperature sensor
• Whisper quiet operation
• Powerful stepper motor
• Zero backlash
• USB connection to a computer
• ASCOM & INDI compatible
• Manual adjustment (powered or unpowered)
• Position memorizing during power off
• Compatible with most OTAs with proper adapter
Specification
| Focuser Size | 3" |
| Dimensions | 94X133X108mm |
| Weight | 1062g |
| Clear Aperture | 68mm |
| Maximum Payload | 6kg |
| Drawtube Travel Distance | 30mm |
| Focusing Resolution | 0.6um |
| Power/Communication Port | 2 x Type-C USB2.0 port |
| Drive Train | Stepper motor with belt reduction |
| Automatic Focusing | Yes |
| Motorised Focusing Button | Yes |
| Manual Focusing | Yes (with override) |
| Temperature Sensor | Yes (built-in) |
| Camera Angle Adjustment | Yes |
