iOptron

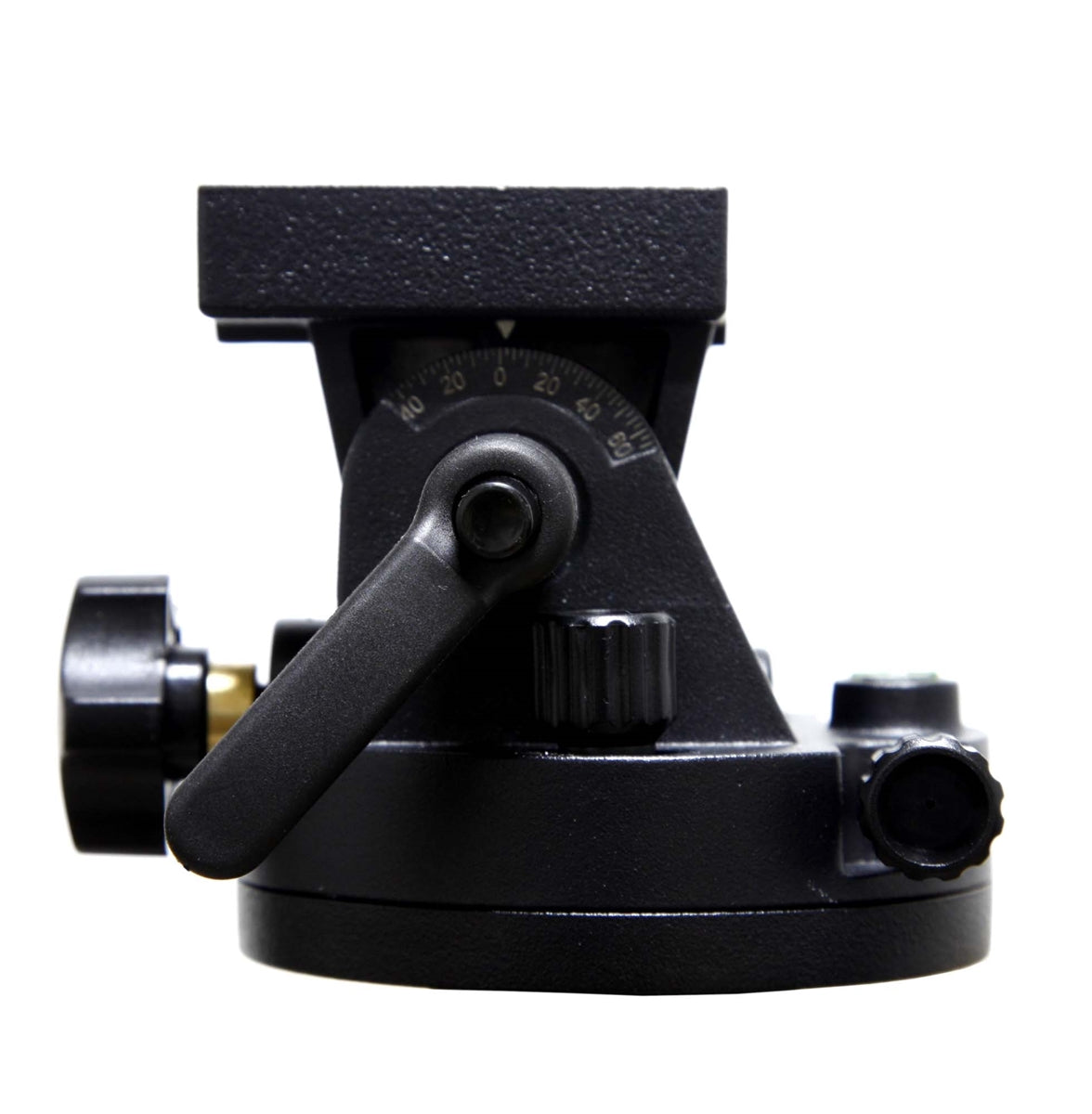

Adjustable AZ/EQ Base

Adjustable AZ/EQ Base

$145.00 NZD
$145.00 NZD
Reduced Sold out
Taxes included. Shipping calculated at checkout.

Adjustable alt-azimuth base for HST Mini Tracker, SkyTracker Pro and SkyGuider Pro mounts. Allows for repositioning during polar alignment while a mount is attached to a tripod. The base has a built-in bubble level. It accepts Vixen-type dovetail bar. The altitude adjustment range is from -30º ~ 65º, so you can mount your device/scope on the either side for better balance.

This adjustable alt-azi base/wedge also fit with other small camera mounts. Dovetail bar not included.

Features

  • All metal construction
  • Accept Vixen-type dovetail bar (not included)
  • Dual direction mounting
  • -30º ~ 65º in latitude adjustment
  • ±5° in azimuth adjustment
  • Φ80 mm mounting base
  • Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)

Specifications

Dovetail saddle Vixen-type
Mounting base diameter Φ80 mm
Mounting base socket 3/8” threaded socket
Latitude adjustment range -30º ~ 65º
Azimuth adjustment range ±5º
Level indicator Level bubble
Gross weight and dimension 680g, 410 x 10 x 10 cm
Warranty One year limited
