Astronz

Focal Reducer 0.75x

Focal Reducer 0.75x

Regular price $149.00
Regular price $0.00 Sale price $149.00
Sale Sold out
Tax included. Shipping calculated at checkout.

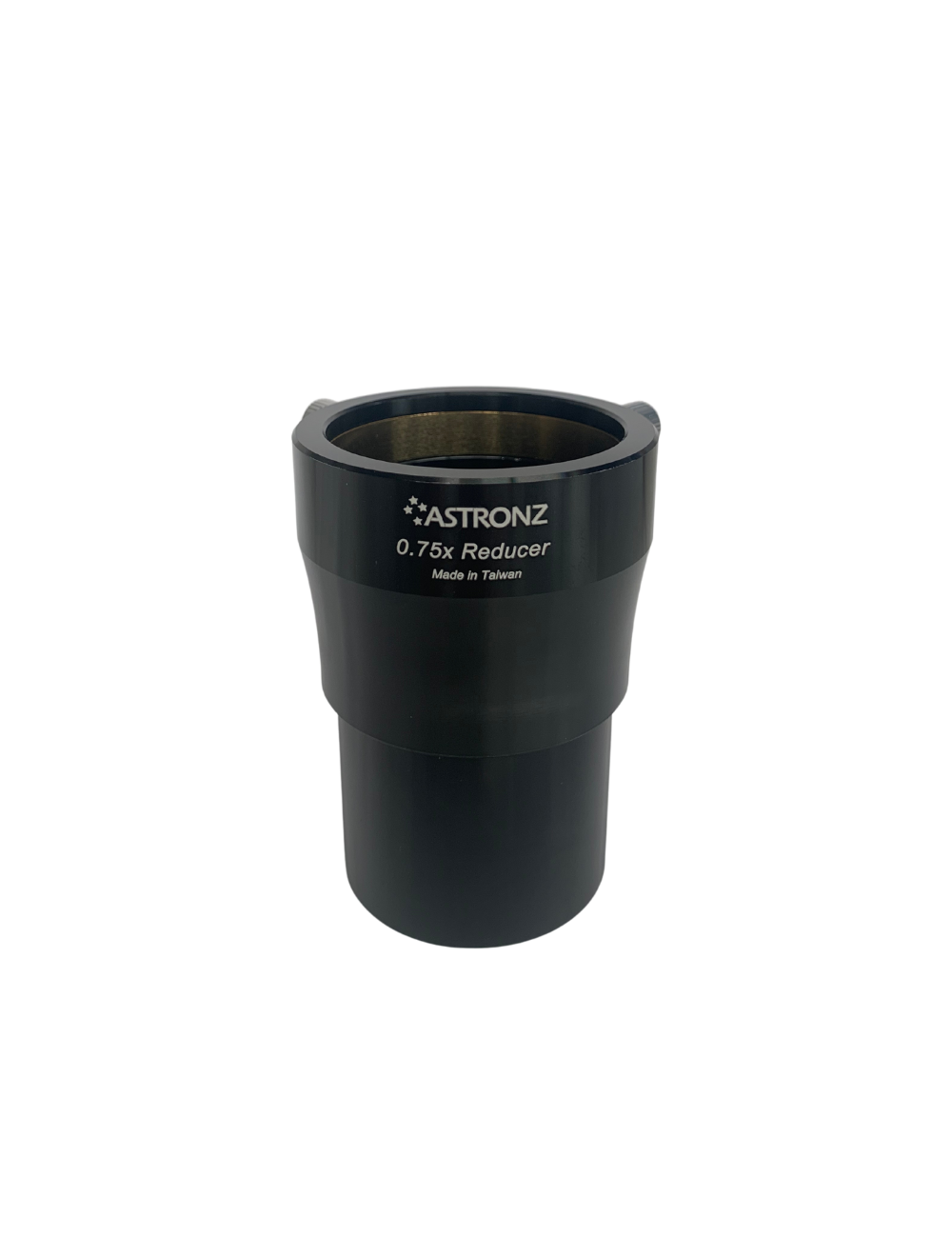

0.75x Focal Reducer

Designed for Ritchey-Chretien telescopes, this two-element optical component reduces the scope’s effective focal length by 0.75x. It enables a wider field of view and shorter exposure times for astrophotography.

For example, it converts an f/8 scope to f/6 or an f/9 scope to f/6.75, making it easier to capture faint detail in astrophotos with shorter exposure times.

The focal reducer has fully multi-coated optics to retain image color, brightness, and contrast. Although it’s not a field flattener, this reducer helps retain the inherent field flatness of an RC scope.  It’s ideal for astronomy cameras with sensor diagonals as large as 15mm.

It provides about 80mm of back focus, enough to accommodate off-axis guiders and filter wheels. The black-anodized body slips into a 2” focuser or adapter, and it secures accessories with 2” barrels using a non-marring compression ring.

On the scope side, the reducer includes a 2” barrel with female M48x0.75 threads. The camera side has a 2” female tube that accepts cameras with 2” nosepieces. The 2” tube can be unscrewed, revealing a male M48x0.75 thread. An M48-M42 step-down adapter is included.
