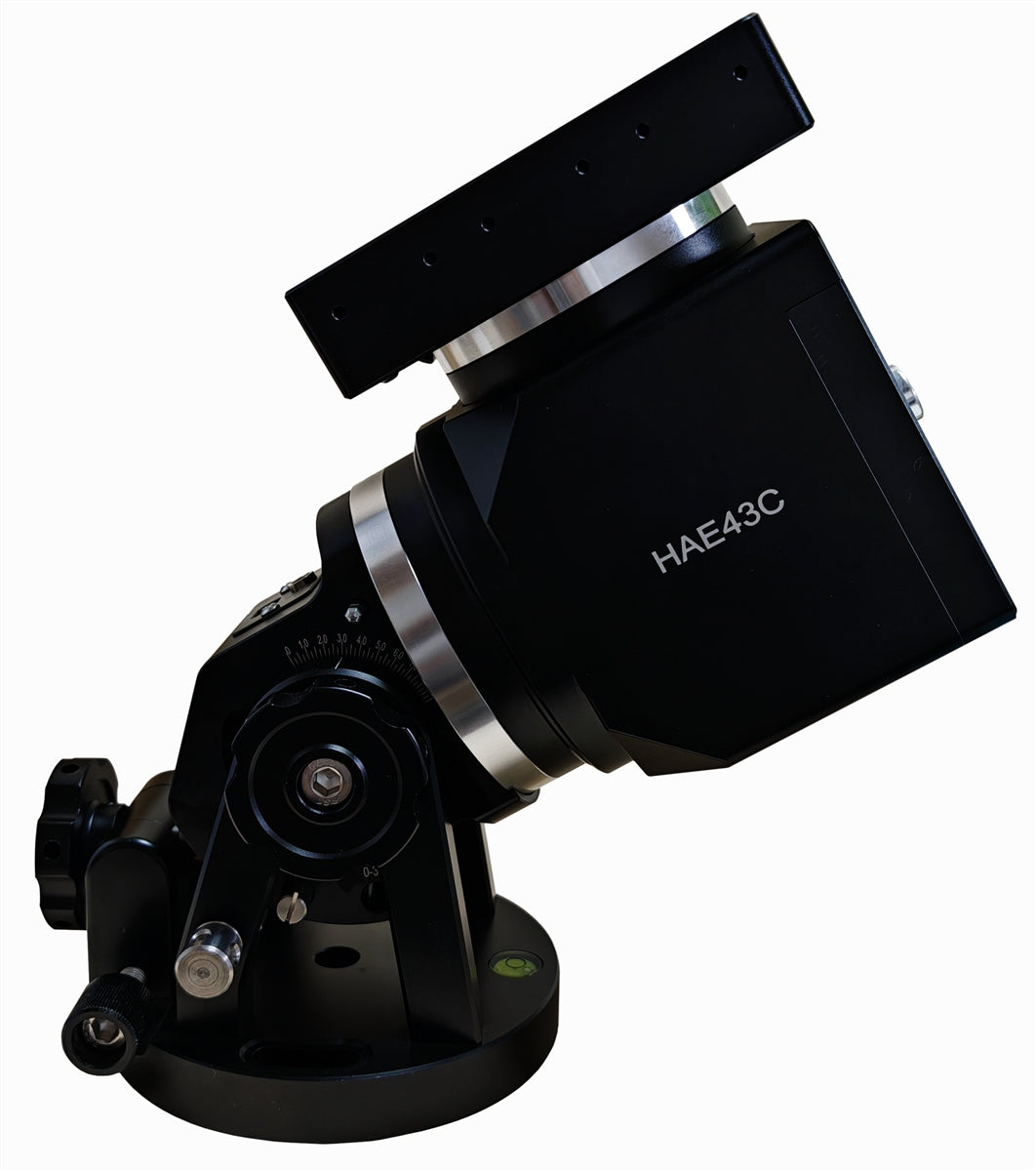

HAE43C Dual AZ/EQ Strain Wave Mount

The newest members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE43C. These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 6kg with a payload capability 20kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE43s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction break to safely stop movement during a planned or unplanned power interruption.

All HAE "C" model dual SWG Alt-az/Eq mounts now have an internal main board and no longer requires a handset for operation. An HAE43C mount can be controlled by a computer via the USB-C port on the mount base, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a Mac OS software. I can aslo be operated with full GoTo function from the optional 8411 handset.

The HAE43C EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

(Actual contents may differ from the image. Handset and iPolar are optional)

Options

add an iOptron Carbon Fibre Tripod with your mount.

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
