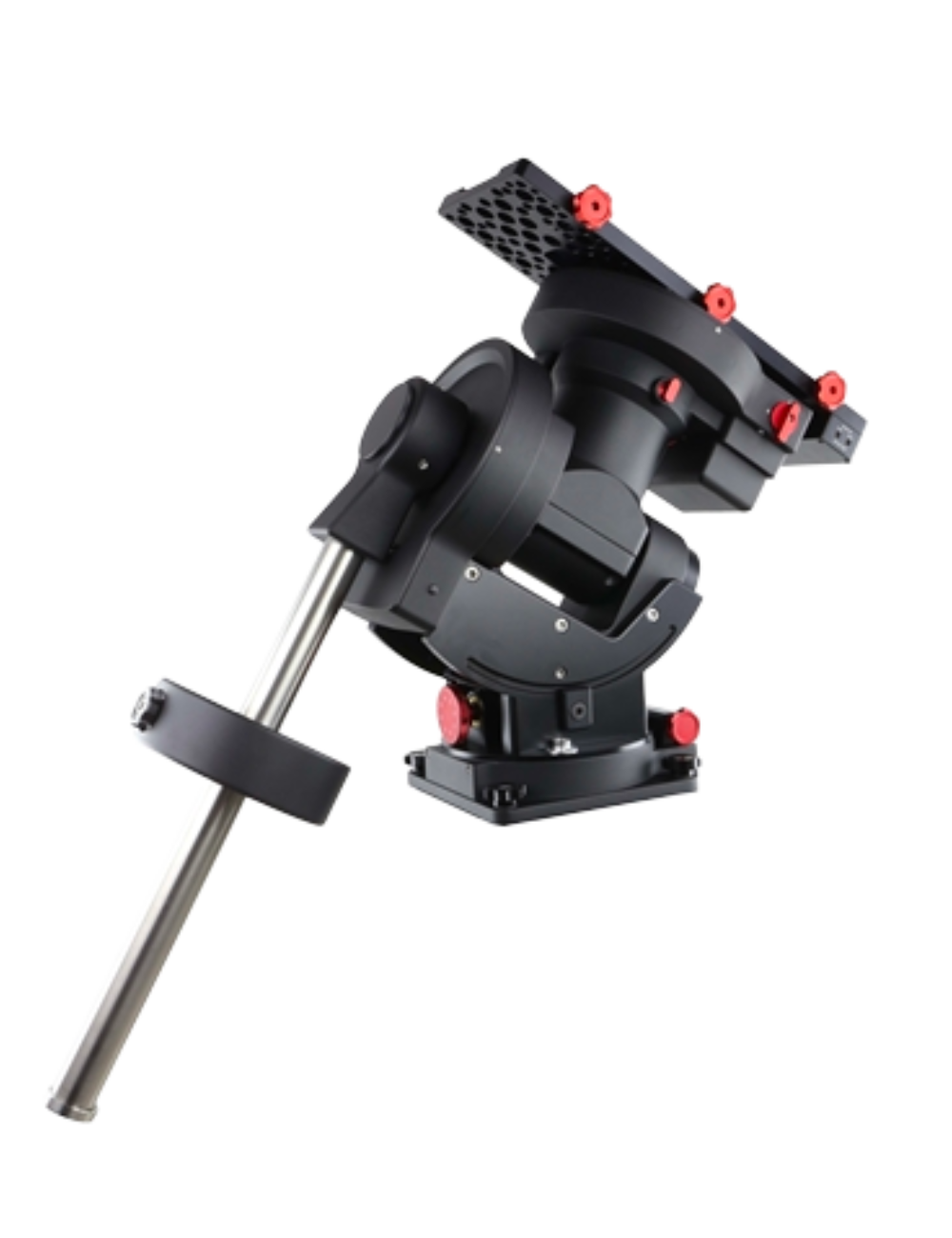

iOptron CEM120EC Goto EQ Mount

iOptron

iOptron CEM120EC Goto EQ Mount

$10,949.00

The innovative mount with high precision encoders, for larger telescopes.

Recognizing the growing demand for an accurate and stable equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, iOptron has created the CEM120EC. It offers the benefits of thie “center balance” design: stability, accuracy, and smooth mechanical operation, while being capable of carrying a payload up to 52 kg. The “center balance” design’s natural stability is due to its focusing the mount along with the payload's weight directly over the center of the pier or tripod.

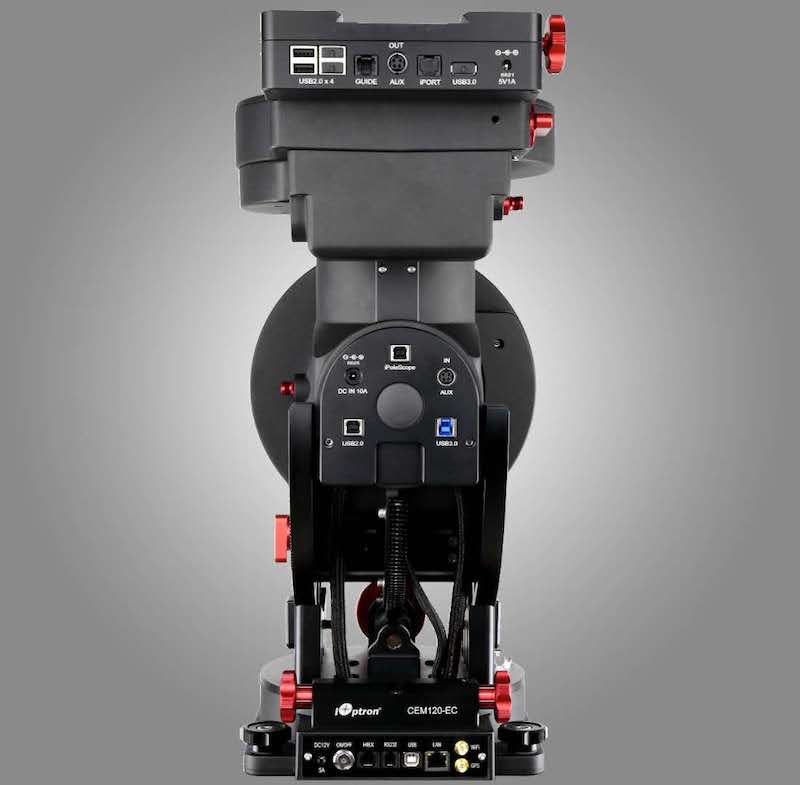

The CEM120EC's performance is demonstrated by its low periodic tracking error of <0.15 arcsec RMS. Along with the stability aspect, the CEM120EC features an advanced cable management system consisting of more ports in more locations preventing tangle ups and reducing the chance of fractured cables. It also adds some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes.

Features:

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Observatory astrophotography mount ideal for both visual and astro-photographers
  • Payload of 52 kg with the mount weight of 26 kg
  • Easy to use and reliable gear clutches
  • Adjustable counterweight shaft for 0º latitude operation
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • Polar alignment routine for those who can't see the SCP
  • Go2Nova® 8407 V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
  • High precision tracking with low periodic error (PE)<0.15 arcsec RMS
  • Real time periodic error correction (RPEC)
  • Built-in 32-channel Global Positioning System (GPS)
  • Built-in WiFi and LAN for remote operation
  • Integrated ST-4 autoguiding port
  • Advanced cable management system with more choices
  • Spring loaded, individual adjustable Losmandy saddle
What's In the Box?
Specifications
Features
Delivery
  • CEM120EC mount head x1
  • Go2Nova 8407 V2 hand controller x1
  • 10 kg counterweight x2
  • Counterweight shaft x1
  • Hand controller cable x1
  • Serial cable (#8412) x1
    • MountCenter-balanced Equatorial Mount (CEM)
    Payload52kg, excluding counterweight*
    Mount Weight26kg
    Payload/Mount weight2:1
    MaterialAll Metal
    Latitude adjustment range0°~ 68° (0.5 arcmin division)
    Azimuth adjustment range± 5° (3 arcmin division)
    Tracking accuracy (PE)< 0.15 arcsec RMS
    Worm Period240 sec
    PECReal time PEC (RPEC)
    RA & Dec worm wheelΦ216mm, 360 teeth, zero backlash
    WormΦ26mm
    RA & Dec AxleΦ80mm, steel
    RA & Dec BearingsΦ125mm
    Counterweight shaft
    		Φ38.1x 540 mm (SS, anti-slip, 4.5kg)
    Counterweight
    		10kg
    Mount base size
    		210 x 230mm
    Motor drive
    		Precision stepper motor w/128 micro-step
    Resolution
    		0.07 arc seconds
    Slew speed
    		4°/sec (960x) max.
    Hand Controller
    		Go2Nova® 8407 V2, 8 line 21 character LCD
    Power requirement
    		DC 12V, 5A
    Power consumption
    		0.7A(Tracking),1.8A(GOTO)
    Polar Scope
    		Not Included
    Meridian treatment
    		Stop (0-14° pass), auto flip
    Zero PositionAutomatic zero search
    Park PositionHorizontal, vertical, current, alt/azi input
    Level IndicatorYes
    Dovetail saddle
    		Losmandy D, 437mm
    GPSYes
    Guiding PortST-4
    Communication portRS232, USB, LAN, WiFi
    Cable management
    		2xDC12V (1A), DC5V(1A), 2xDC (5A), ST4, 6P6C,
    4xUSB2.0, USB3.0 (powered), USB for PS, AUX
    Pier/Tripod
    		Optional pier
    Warranty
    		Two year limited

    * These are only guidelines. Some telescopes are very long or very big for their weight and may require a larger mount. Remember also that imaging requirements are more rigid than visual
