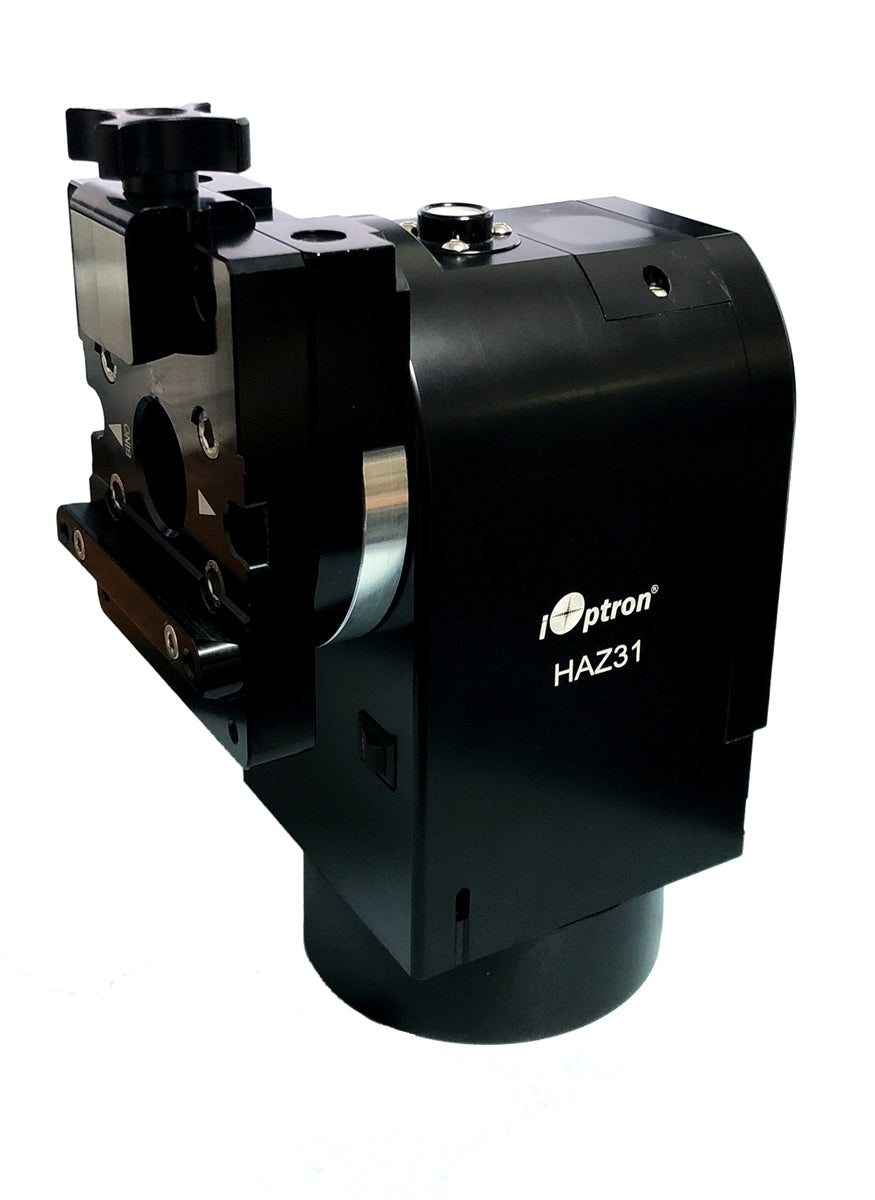

iOptron HAZ31 Alt-Az Strain Wave Mount

Skip to product information
1 of 3

iOptron

Regular price $4,195.00 NZD
Regular price Sale price $4,195.00 NZD
Reduced Sold out
Taxes included. Shipping calculated at checkout.

This light weight, compact, medium payload HAZ31 mount will deliver an astronomy experience like never before. With a mount head weighing in at 3.7 kg, HAZ31 has a payload capability 14 kg, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments where flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely setting up the HAZ31 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested "Level and Go" technology.

Utilizing state of the art strain wave gear technology for both RA and DEC movement, the HAZ31 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, but it’s also a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake on both ALT and AZI allow the mount safely stop.

An HAZ31 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.


View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
MountStrain Wave Altazimuth Mount
RA Gear SystemStrain Wave Gear
DEC Gear SystemStrain Wave Gear
RA/DEC Reduction Ratio480:1
Payload *14 kg
Mount Weight3.7 kg with dovetail saddle
Payload/Mount Weight Ratio3.78
Drive MotorStepper motor
Structure MaterialAll metal, CNC machined
Exterior FinishAnodized black
Level IndicatorLevel bubble
Control SystemGOTONOVA/Commander
Hand ControllerGo2Nova® 8409 with ~212,000 objects database
TrackingAutomatic
Maximum Slew Speed8º/sec
Power Consumption0.6A(Tracking), 1A(GOTO)
PowerDC12V-5A (5.5/2.1mm DC plug)
AC Adapter100V ~ 240V (included, indoor use only)
Power Off BrakeElectronic friction brake
GPSBuilt-in
Wi-FiBuilt-in
Communication PortYes (Wi-Fi and USB, via HC)
Firmware UpgradeYes
Dovetail SaddleVixen & Losmandy
TripodOptional
Operation Temperature-20ºC ~ 40ºC
WarrantyTwo year limited

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

  • Advanced strain wave gear system technology
  • Payload capacity of 14 kg with the mount weight of 3.7 kg (includes dovetail saddle)
  • CNC machined
  • Unique friction brake on both AZI and ALT to safely stop movement during a planned or unplanned power interruption

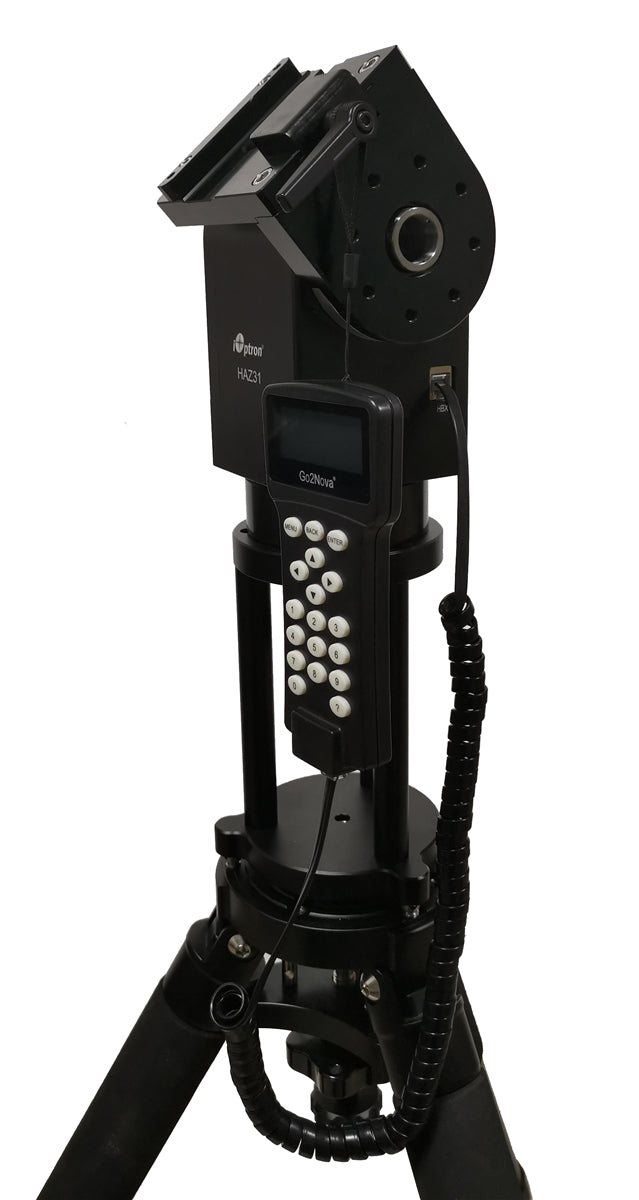

  • Go2Nova® hand controller with ~212,000 object database
  • Built-in GPS receiver
  • Dual saddle (Vixen and Losmandy-D styles)
  • Level & Go
  • Large binocular mounting
  • Satellite tracking
  • Built-in zero position search and locator
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control

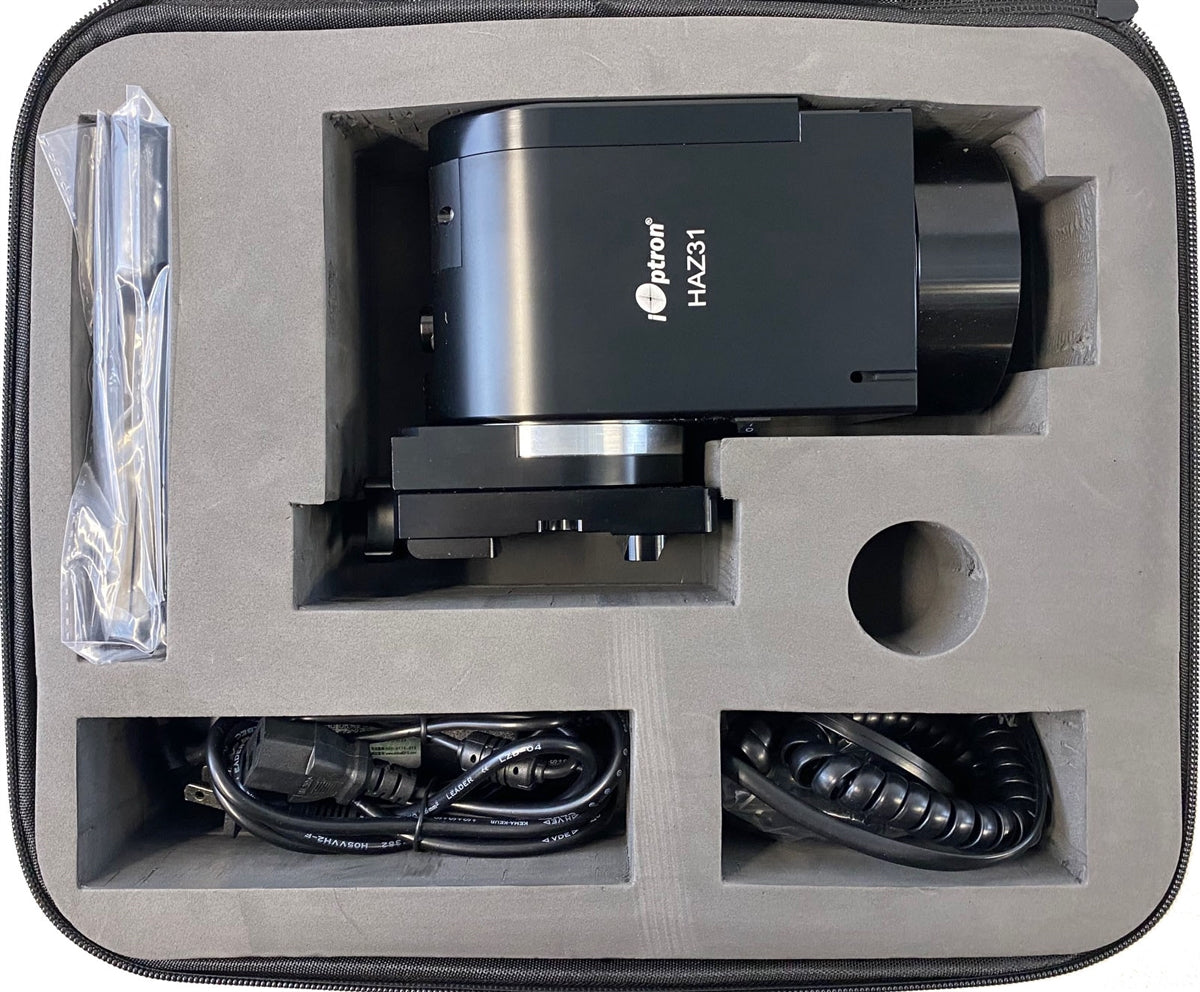

  • Carrying case
  • Two-year warranty

Add an iOptron Carbon Fibre Tripod with your mount.
