The iOptron iGuide compact autoguider system consists of a portable mini guiding scope with a diameter of 30mm and focal length 120mm and an iGuider 1 Camera.
The resolution of the autoguider is 6.44 arc sec/pixel, especially suitable for guiding with short to medium focal length telescopes.
With dielectric AR-coated achromatic lenses, the iGuide Scope is sharp in imaging and ensures high quality guiding.

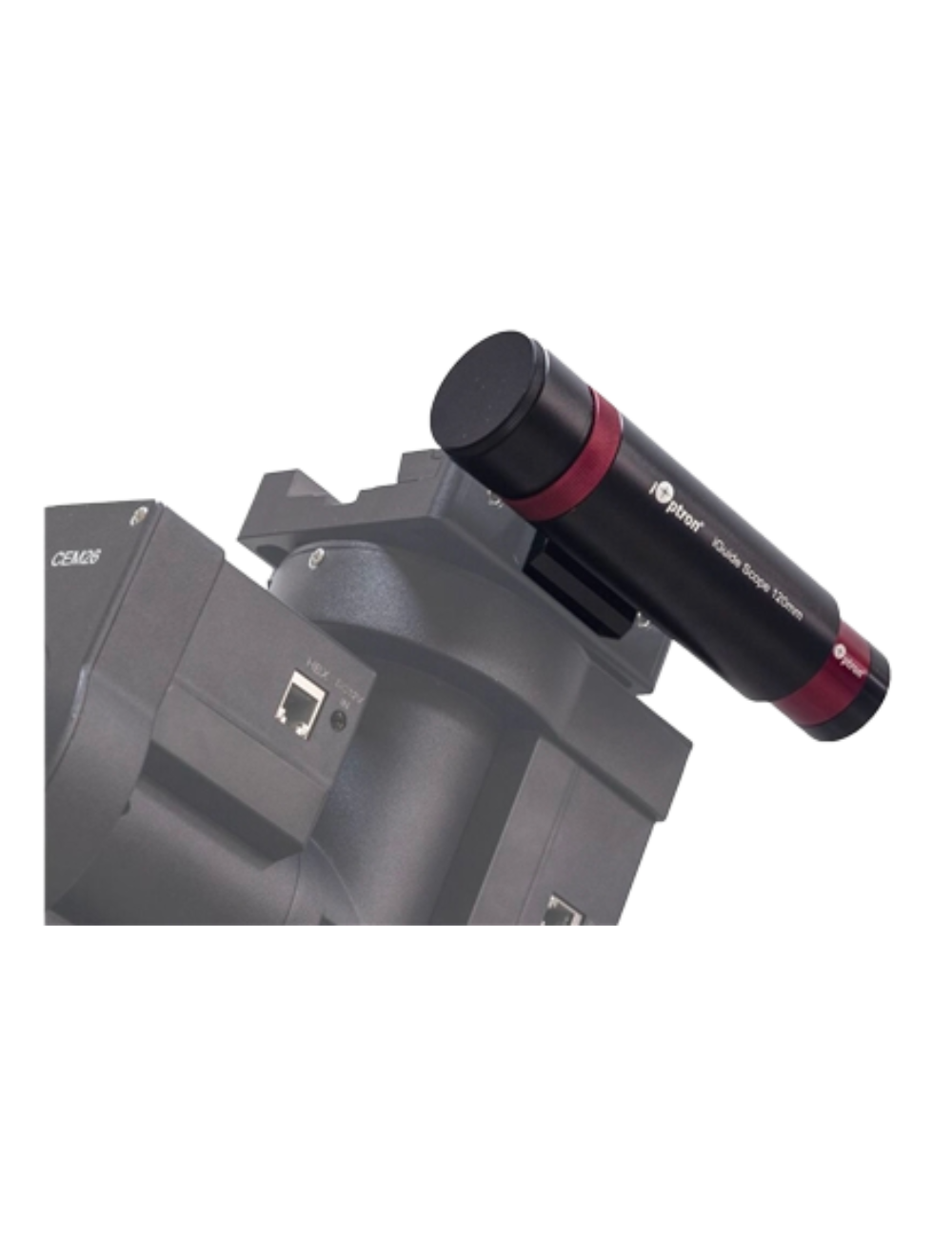

The iGuide autoguider can mate with iOptron CEM26/GEM28 mounts seamlessly without any adapters.
It also comes with a standard finder scope dovetail, readily fits with telescopes that have a finder scope slot.
Weight: 200 g (including iGuide Scope and iGuider camera)
Focal length: 120mm
Focal ratio: F/4
Pixel size： 3.75μm
Pixel array: 1280*960
Mega pixel: 1.2 MP
Chip size： 1/3”
Resolution: 6.44 arcsec/pixel (coupled with iGuide Scope)
Guiding method：Support Pulse Guiding (ASCOM Guiding), not support ST-4 Guiding
