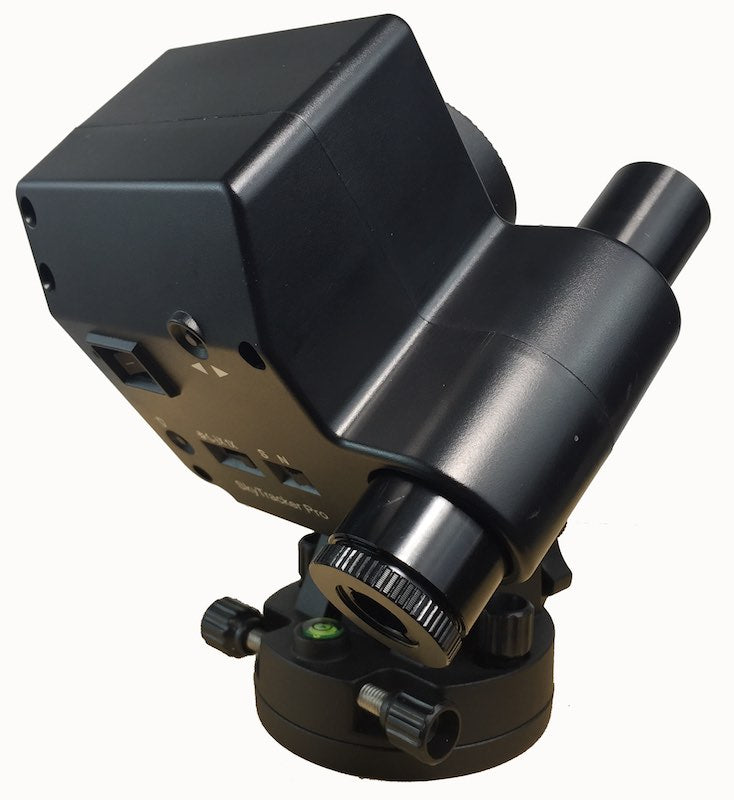

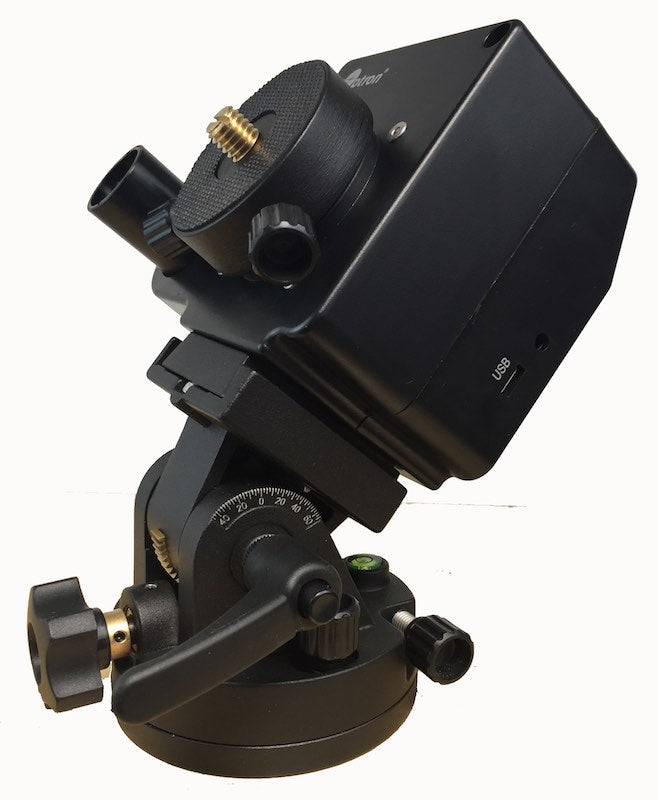

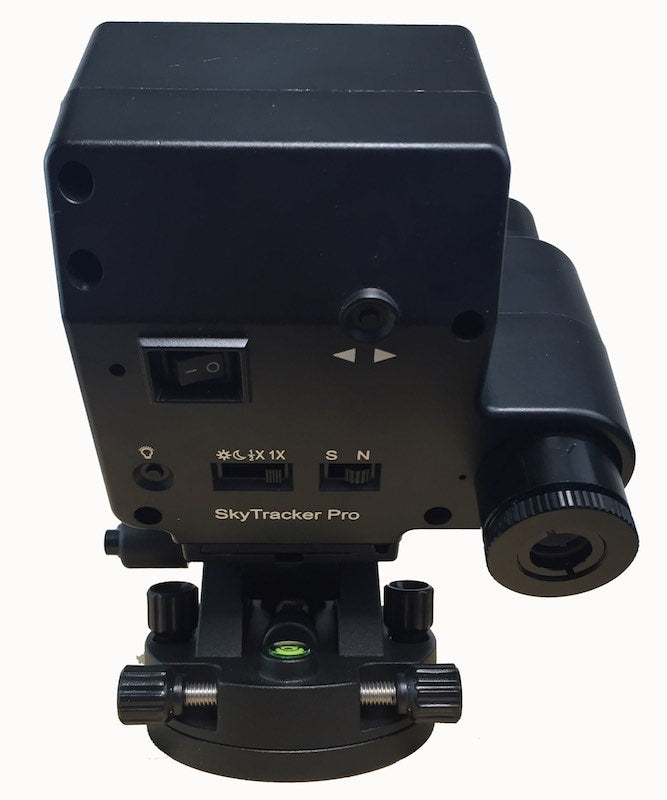

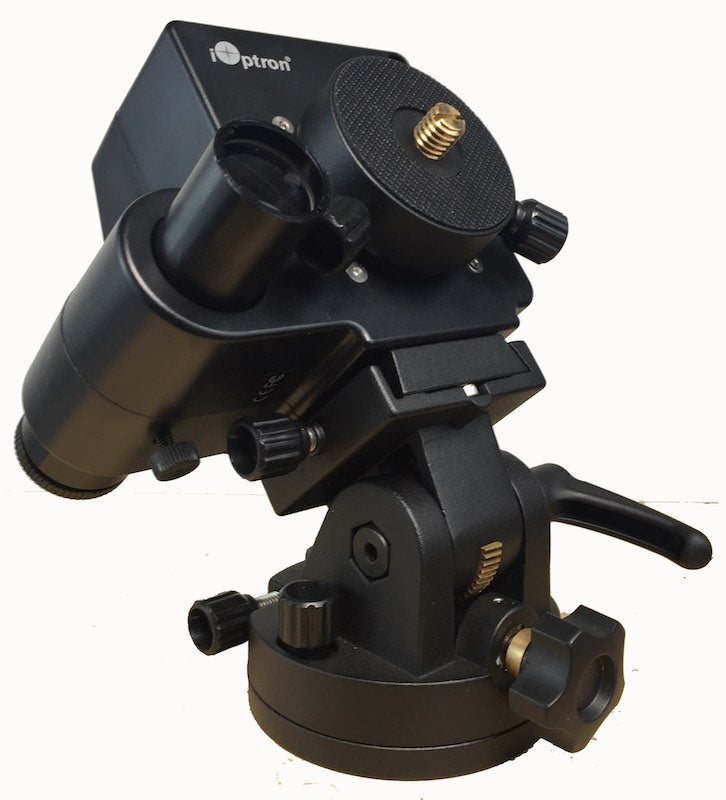

iOptron SkyTracker Pro Mount
iOptron SkyTracker Pro Mount
Couldn't load pickup availability
Simply attach your camera to take stunning images of the night sky.
This portable mount makes it easy to take long exposures of the night sky without streaking or star trailing.
The SkyTracker Pro is simple to set up and use. Just attach the unit to a camera tripod then slide and lock your digital camera into the saddle. Align to the South Celestial Pole. Then the mount's slow-motion motors keep your camera tracking as the Earth rotates for beautiful images of the night sky.
It is lightweight and portable, small enough to fit on your palm. Batteries last up to 24 hours, so no need for a power pack.
The improved precision polar scope maintains a fine engraved reticule, and now features adjustable illumination with eight brightness levels.
The SkyTracker Pro has four tracking rates - 1x , 1/2x (for sky and landscape), plus lunar and solar. It also includes a quick slew mode with both forward and reverse to help quickly reframe your image without disrupting the camera position.
The removable alt-azimuth base features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyTracker Pro head (without the base) directly to any standard photographic tripod with 1/4 or 3/8 threads.
A ball head is needed for pointing the camera in any direction. You can add the Astronz ball head as an optional extra if you do not already have one with your camera/tripod setup.
Product specs:
| Mount | Ultra compact single axis EQ | |
| Payload | 3kg maximum | |
| Mount weight | 685gm with battery 1150gm with battery and base |
|
| Body material | Die-cast aluminum with ABS cover | |
| RA Shaft | Φ25mm, steel | |
| Worm Wheel | Φ74mm, 144 teeth aluminum alloy | |
| Worm Gear | 11 mm, brass | |
| Worm Period | 600 sec | |
| Bearing | 4 pieces | |
| Motor Drive | DC servo | |
| Tracking | RA automatic | |
| Tracking Speed | 1X Cel, 1/2 Cel, solar, lunar, N/S | |
| Fast slew speed | 180X, forward and reverse | |
| Polar Sight Hole | ~8 deg FOV | |
| Polar Scope | 6° FOV with dark field illuminated | |
| Power Requirement | Internal rechargeable battery | |
| Battery type | Li-Poly, 3.7V, 2000mAh | |
| Duration of operation | up to 24 hours at 20°C | |
| Power charge port | Micro USB (5V), 80% charge in 5 hours | |
| Body Dimensions | 115x115x95 mm | |
| Operating temperature | -15~40°C | |
| Mounting ring | Ø53 mm, 3/8” or 1/4" post threads | |
| Alt-Azi adjustable Base | Vixen style saddle, 3/8” socket (1/4" converter) | |
| Latitude adjustment range | -30º ~ 65º (with Alt-azi base) | |
| AZ adjustment range | ±5° | |
| Base diameter | Φ80 mm | |
| Warranty | One year limited |
What's in the box:
-
SkyTrackerTM Pro camera mount
-
Alt-azi base (installed)
-
AccuAlignTM dark field illuminated polar scope
-
Brass 3/8” and 1/4” threaded ball head mounting post (installed)
-

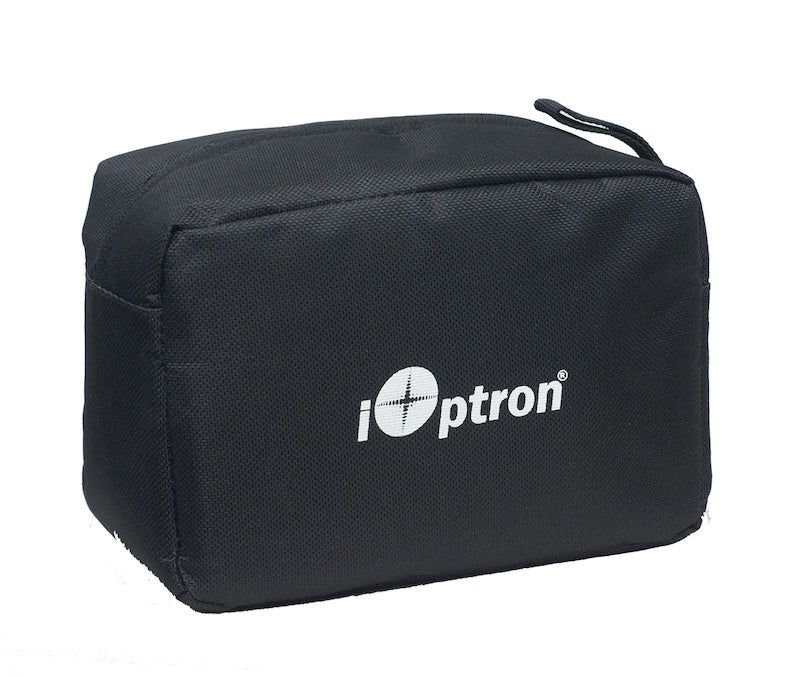

Padded carry bag
-
Micro USB charging cable
-
One Year Limited Warranty
