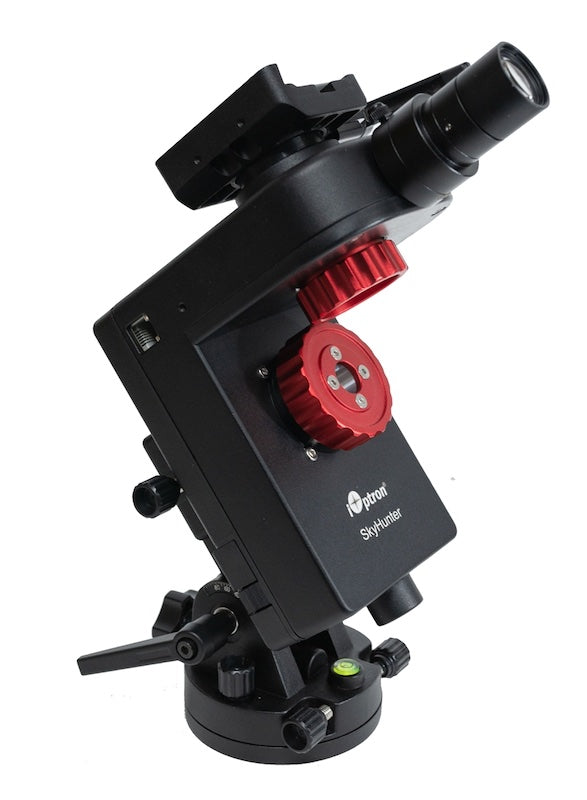

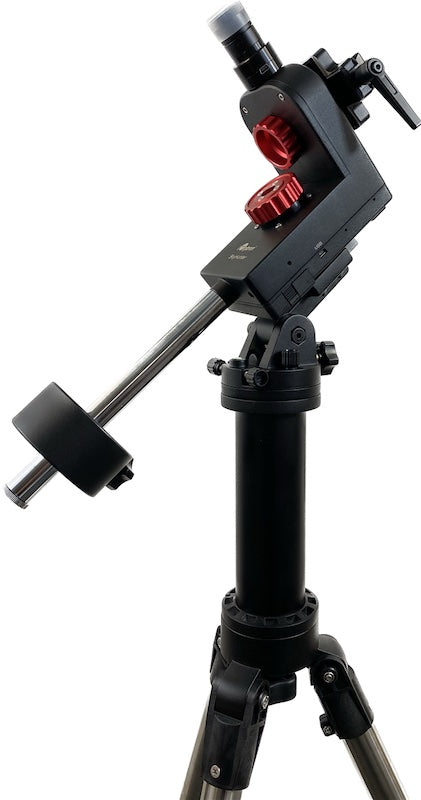

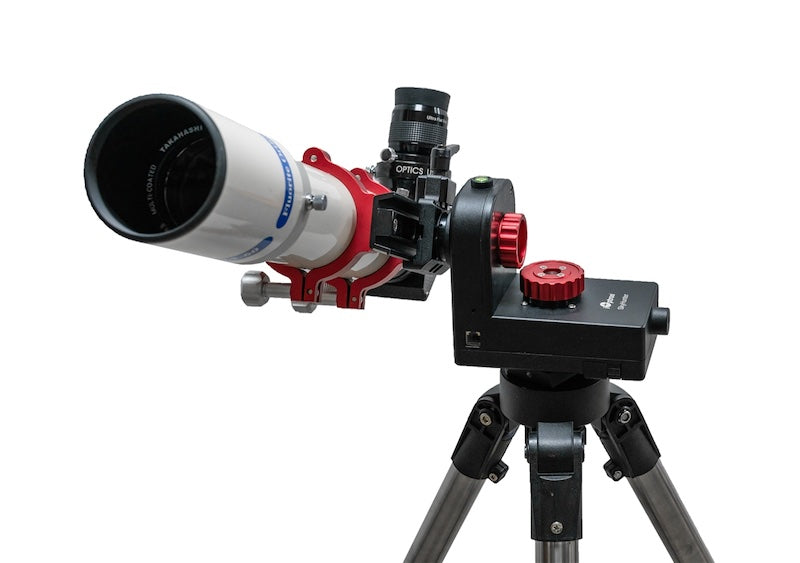

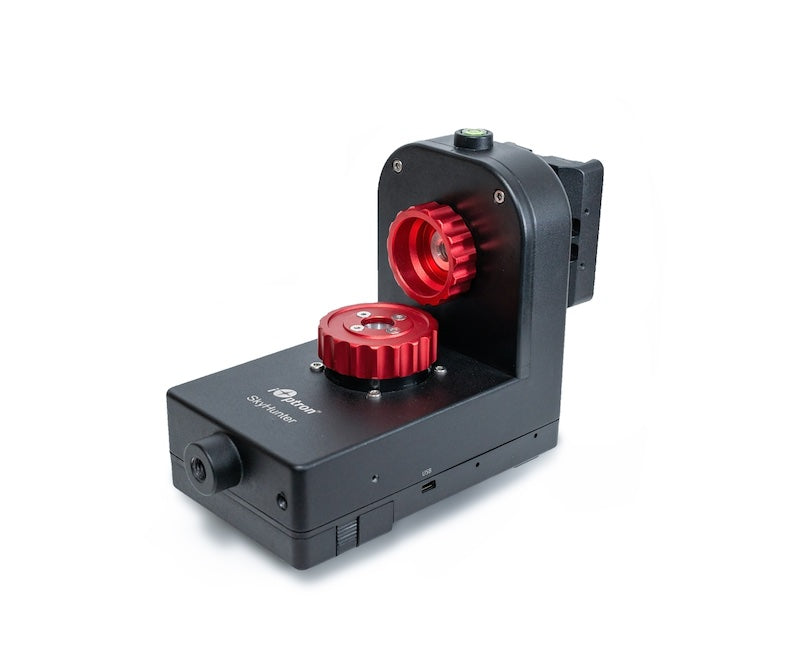

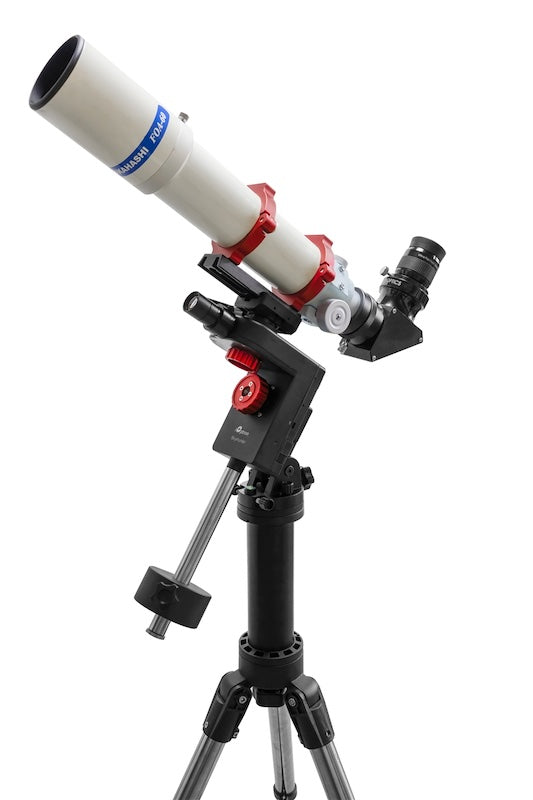

SkyHunter with iPolar
SkyHunter™ GOTO EQ/AZ mount
EQ base
Stainless steel counterweight shaft
3 lbs counterweight
iPolar electronic polar scope
MiniUSB charging cable
#3221 Tripod
#8041 Pier extension
One Year Limited Warranty (90 days on battery)
Mount | Ultracompact GOTO EQ/AZ mount |
---|---|
Payload (Max.) | 11 lbs (5kg), balanced |
Mount Weight | 2.9 lbs (1.3kg) with battery |
Structure Material | Metal frame structure |
Motor Drive | Dual-axis DC servo motor with optical encoder |
Transmission | Synchronous belt |
Tracking Speed | Solar, Lunar, Cel, 1/2 Cel, N/S |
Max Slew Speed | 4.5°/sec (1080X) |
Worm Period | 600 sec |
RA/DEC Worm Wheel | Φ77 mm, 144 teeth |
Hand Controller | Yes (with optional 8410 HC) |
Altitude Adjustment Range | 0º ~ 80º |
Azimuth Adjustment Range | ±5º |
Power Requirement | Internal rechargeable battery |
Battery Type | Li-Poly, 3.7V, 2000mAh |
Duration of Operation | Up to 10 hours at 20ºC |
Polar Scope | iPolar electronic polar scope |
Counterweight Shaft | Φ20mmX200mm, 3/8" thread, stainless steel |
Counterweight | 3 lbs (1.3 kg) |
Dovetail Saddle | Vixen-type |
Body Base Connection | Vixen dovetail, 3/8” socket |
Autoguiding | ASCOM compatible |
Power Charge Port | MiniUSB (5V) |
Wi-Fi | Built-in |
Communication Port | Yes (Wi-Fi and USB) |
Firmware Upgrade | Yes (via USB port) |
Tripod | 3221 Stainless Steel, optional carbon fiber tripod |
Pier Extension | Φ80x190 mm |
Operation Temperature | -10ºC ~ 40ºC |
Warranty | One year limited (90 days on battery) |
This product is shipped with NZ Post Courier.
