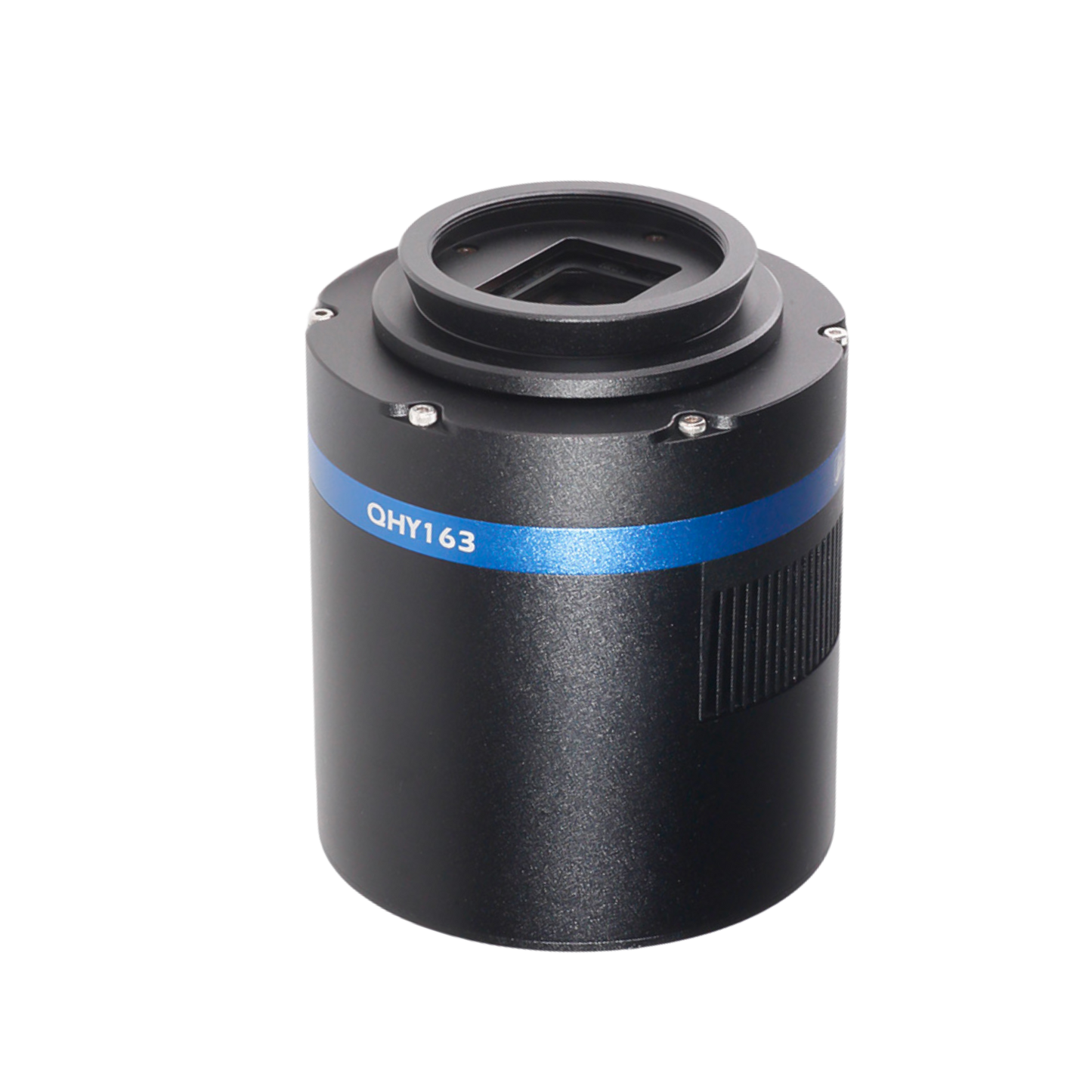

QHY163 Mono Camera


Cooled USB 3.0 Planetary and Deep Sky COLDMOS Camera

The QHY163M camera is an incredible value. It uses a relatively large 4/3inch, 16 Megapixel monochrome CMOS sensor. The QHY163M has exceptionally low readout noise (as low as 1 electron!), low dark current and two-stage cooling capable of reducing the sensor temperature to -40C below ambient. The sensor chamber is sealed and the optical window is heated to prevent dew. The camera's interface is USB 3.0 and delivers 23FPS@16 megapixel full resolution output, 30FPS@4K HD video output.

The QHY163 has a built-in 128MB DDRII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, and the frame will not be lost or corrupted. This buffer also allows a slower computer with USB 2.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also helps multiple camera applications and avoids USB transfer problems. For example, it is possible to operate four QHY163M cameras on the same computer to create an LRGB imaging array.

Full Anti-Dew Solution - With more than a decade of experience designing cooled cameras, QHYCCD has applied this knowledge to the QHY163 camera. The full anti-dew technology includes a sealed CMOS chamber with silicon gel tube socket and a heated chamber optical window. This technology prevents dew from forming on the sensor itself, or on the chamber window, even in a high humidity environment.

Check the QHY Connection Combination Table for the various adapter options


QHY cameras are arriving regularly. If the camera you want is not in stock, please let us know (using the Contact Us form) as we can usually get a specific camera within 2 to 4 weeks.

Sensor 4/3 inch 16 Megapixel CMOS Mono Sensor
Illumination Back Illuminated
Sensor Size 17.7mm x 13.4mm
Pixel Size 3.8um x 3.8um
Efective Pixels 4656 x 3522, 16 Megapixels
Shutter Electronic Rolling Shutter
Exposure Time 50us-3600 sec

Frame Rate (on 8bit)

 22.5FPS@16MP, 30FPS@4K HD Video
57FPS@1920*1080, 60FPS@1280*1024
80FPS@1024*768, 100fps@800*600
Exposure Time 50us - 1800 sec
AD Sample Depth 10-bit/12-bit (8-bit/12-bit output)
Read Noise 2.4e@low gain 1e@high gain
Dark Current 0.0024e-/p/s@-15C
Full Well 20ke-
Cooling 2-stage TEC, -40C below Ambient, typical. Temperature Regulated
Ports 4-pin QHYCFW2 socket / 6-pin RJ11 Guide Port
Computer USB3.0
Telescope Interface
 M42/0.75 & 2-inch adapter
Weight 450g
Power USB Powered for camera and +12V powered for TEC

The manual and software can be downloaded from

QHY Website
