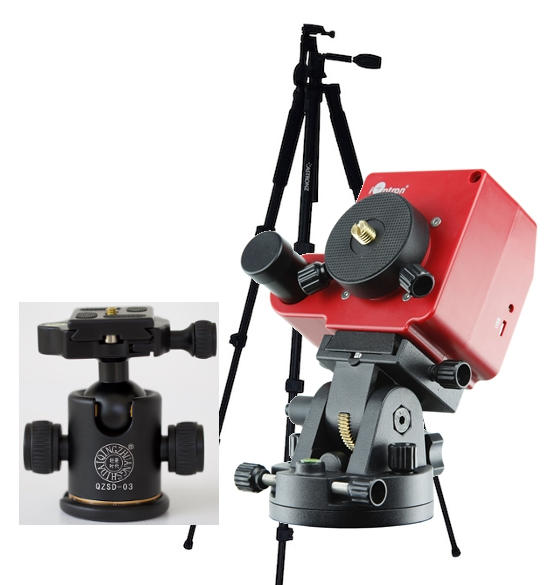

Getting started in astrophotography package

$795.00

Simply attach your camera to take stunning images of the night sky. Includes a tripod and ball head for mounting.

This portable mount makes it easy to take long exposures of the night sky without streaking or star trailing.

The SkyTracker Pro is simple to set up and use. Just attach the unit to a camera tripod then slide and lock your digital camera into the saddle. Align to the South Celestical Pole. Then the mount's slow-motion motors keep your camera tracking as the Earth rotates for beautiful images of the night sky.

It is lightweight and portable, small enough to fit on your palm. Batteries last up to 24 hours, so need for a power pack.

The improved precision polar scope maintains a fine engraved reticule, and now features adjustable illumination with eight brightness levels. Polar alignment is quick and easy using a smart phone app.

The SkyTracker Pro has four tracking rates - 1x , 1/2x (for sky and landscape), plus lunar and solar. It also includes a quick slew mode with both forward and reverse to help quickly reframe your image without disrupting the camera position.

Please note, the mount colour is now black.

What's In the Box?
Specifications
Features
  • SkyTrackerTM Pro camera mount
  • Alt-azi base (installed)
  • AccuAlignTM dark field illuminated polar scope
  • Brass 3/8” and 1/4” threaded ball head mounting post (installed)
  • Padded carry bag
  • Micro USB charging cable
  • One Year Limited Warranty
  • Astronz Professional Tripod with carry bag
  • Ball Head
Mount    Ultra compact single axis EQ
Payload 3kg maximum
Mount weight 685gm with battery
1150gm with battery and base
Body material Die-cast aluminum with ABS cover
RA Shaft Φ25mm, steel
Worm Wheel Φ74mm, 144 teeth aluminum alloy
Worm Gear 11 mm, brass
Worm Period 600 sec
Bearing 4 pieces
Motor Drive DC servo
Tracking RA automatic
Tracking Speed  1X Cel, 1/2 Cel, solar, lunar, N/S
Fast slew speed 180X, forward and reverse
Polar Sight Hole ~8 deg FOV
Polar Scope 6° FOV with dark field illuminated
Power Requirement Internal rechargeable battery
Battery type Li-Poly, 3.7V, 2000mAh
Duration of operation up to 24 hours at 20°C
Power charge port Micro USB (5V), 80% charge in 5 hours
Body Dimensions 115x115x95 mm
Operating temperature -15~40°C
Mounting ring Ø53 mm, 3/8” or 1/4" post threads
Alt-Azi adjustable Base Vixen style saddle, 3/8” socket (1/4" converter)
Latitude adjustment range -30º ~ 65º (with Alt-azi base)
AZ adjustment range ±5°
Base diameter Φ80 mm
Warranty One year limited
  • All metal structure with ABS covers

  • Attaches to a camera tripod with 3/8” or 1/4” threads

  • Accepts cameras weighing up to 3 kg

  • Silent tracking for smooth camera motion, perfect for long-term exposures

  • Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment

  • Reversible mounting post for both 3/8” and 1/4” threaded ball head mounting

  • Includes iOptron AccuAlign dark-field illuminated polar scope

  • Adjustable polar scope illumination with eight brightness levels

  • 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time

  • Quick slew (180X max.) for camera framing adjustment

  • Operation in both northern and southern Hemisphere

  • Built-in rechargeable battery with Micro USB port for power and charging

  • Up to 24 hours of operation (20°C)

  • 1/4" – 3/8” thread converter included

  • Padded carry bag included

  • Optional add a Ball Head and Astronz Tripod

  • High quality 2 handle 3-way fluid head

  • Heavy Duty 10kg payload

  • Spirit level and compass built in

  • Included quick release plate

  • Centre column hook for additional stability

  • Lightweight - 3.1kg

  • Tripod carry bag included

Folded Length   650mm
Max Height   1830mm
Load Capacity   10kg
Weight   3.14kg
Material   Aluminium
