QHY

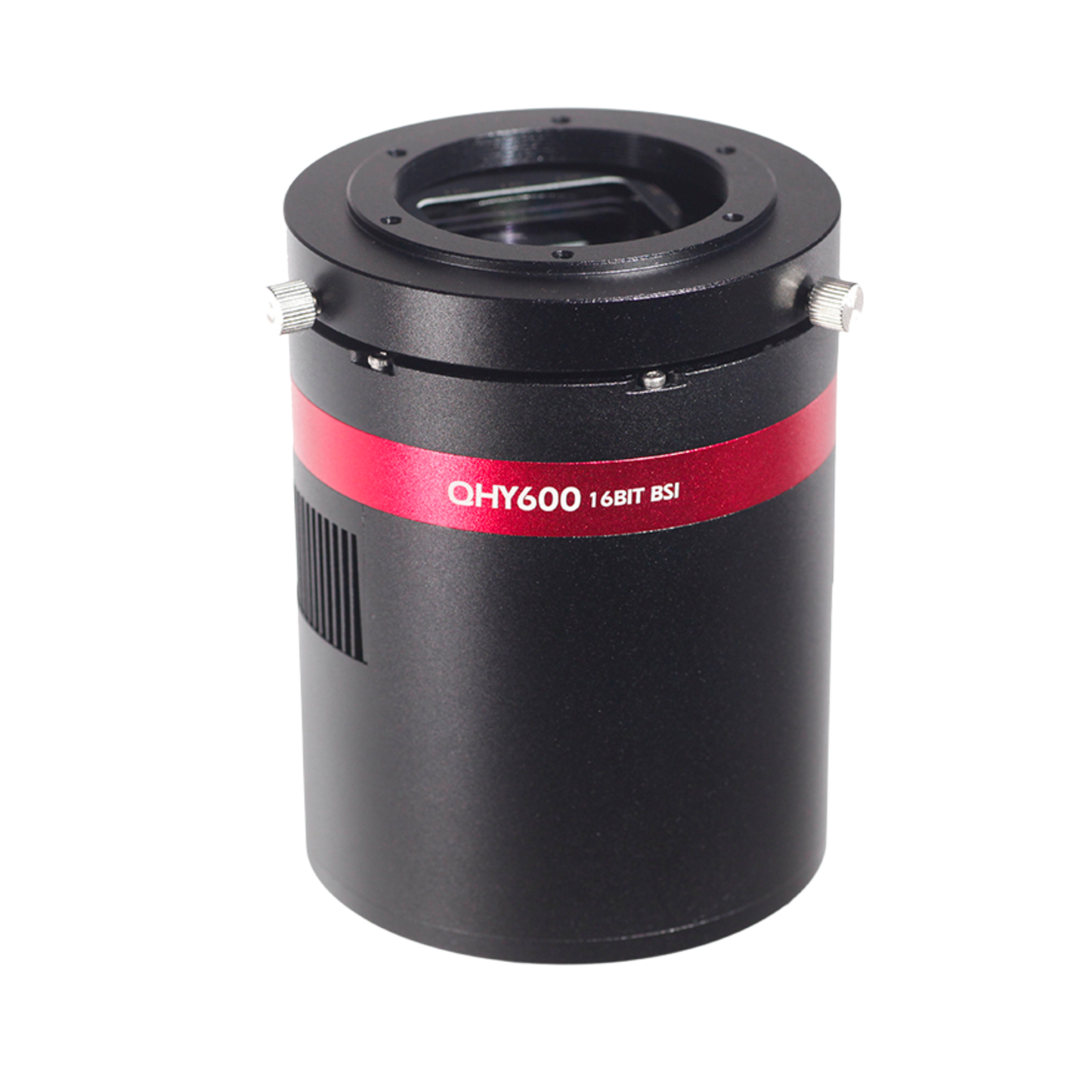

QHY600 Mono Camera

$7,795.00

The QHY600 uses the latest SONY IMX455 back-illuminated sensor, a full frame (35mm format) sensor with 3.76um pixels and native 16-bit A/D. This sensor is available in both monochrome and color versions. The sensor size is 36mm x 24mm. With the round body design, the QHY600 is an ideal camera to match the image circle of the new generaltion of RASA telescopes


Native 16-Bits
The new Sony sensor used in the QHY600 has native 16-bit A/D on-chip. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, a 16-bit A/D yields higher sample resolution and the system gain will be less than 1e-/ADU with no sample error noise and very low read noise.


Multiple Read Mode
  • 51ke- in standard mode at 3.76um
  • 80ke- in extended mode at 3.76um

One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned, with 3.76um pixels, the QHY600 has a full well capacity of more than 51ke-. When binned 2x2 to 7.5um the full well is 196ke- and when binned 3x3 to 11um the full well is 441ke-.


Breakthrough Low Read Noise
  • 1.0e- to 3.7e-
The QHY600 has only one electron of read noise at high gain and full resolution and 4FPS readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging, etc., making this large area sensor ideal for sky surveys, time domain astronomy, fluorescence imaging, DNA sequencing and microscopy.


Back-Illuminated
Equipped with a Sony IMX455, the QHY600 is a back-illuminated Scientific CMOS Camera with extremely low dark current (0.003e/p/s@-20C) using SONY's Exmor BSI CMOS technology. QHY600 is also a zero amplifer glow camera.


2GB Image Buffer
In order to provide smooth uninterrupted data transfer of the entire 60MP sensor at high speed, the QHY600 has 2GB DDR3 image buffer.
Specifications
Image Sensor
Sony IMX455 Back-Illuminated CMOS
Pixel Size
3.76um x 3.76um
Color / Mono Version
Color: QHY600U3C
Sensor Cover Glass
AR+AR Multi-Coated
Sensor Type
Back Illuminated (BSI)
Effective Pixels
61.7 Megapixels
9576 x 6388 effective pixels
9600 x 6422 with overscan and optically black pixels
Effective Image Area
36mm x 24mm, Full Frame Format
Full Well Capacity
(1x1, 2x2, 3x3)
Standard Mode: >51ke- / >240ke- / >408ke
Extended Mode: >80ke- / >320ke- / >720ke
A/D
16-bit @ 1X1Binning, 18-bit @ 2X2, 19-bit @ 3X3, 20-bit @ 4X4
Exposure Time
40us - 3600sec
Full Frame Rate
USB3.0 FRAME RATE
4.0FPS @ 8-bit
2.5FPS @ 16-bit
7.2FPS @ 9600x3194
22.5FPS @ 9600x1080
28FPS @ 9600x768
47FPS @ 9600x480
160FPS @ 9600x100
Read Noise
1.0e- to 3.7e- (Standard Mode)
Dark Current
0.0032e-/p/s @ -20C
GPIO
N/A
Firmware / FPGA
Supported via USB Port
Shutter Type
Electronic Rolling Shutter
Computer Interface
USB3.0
Built-in Image Memory
1GByte (8Gbit) DDR3 Image Buffer plus 10MB user accessible non-volatile memory for (JPEG) Image Storage
Cooling System
Dual Stage TEC, -35C below ambient
Anti-Dew Heater
Yes
Telescope Interface
M54/0.75
Optical Window Type
AR+AR High Quality Multi-Layer Coatings
Power
40W@100%, 20W@50%, 13.8W@/0% TEC
Back Focus
17.5mm (±0.2)
