iOptron

Tri-Pier 360

$2,095.00

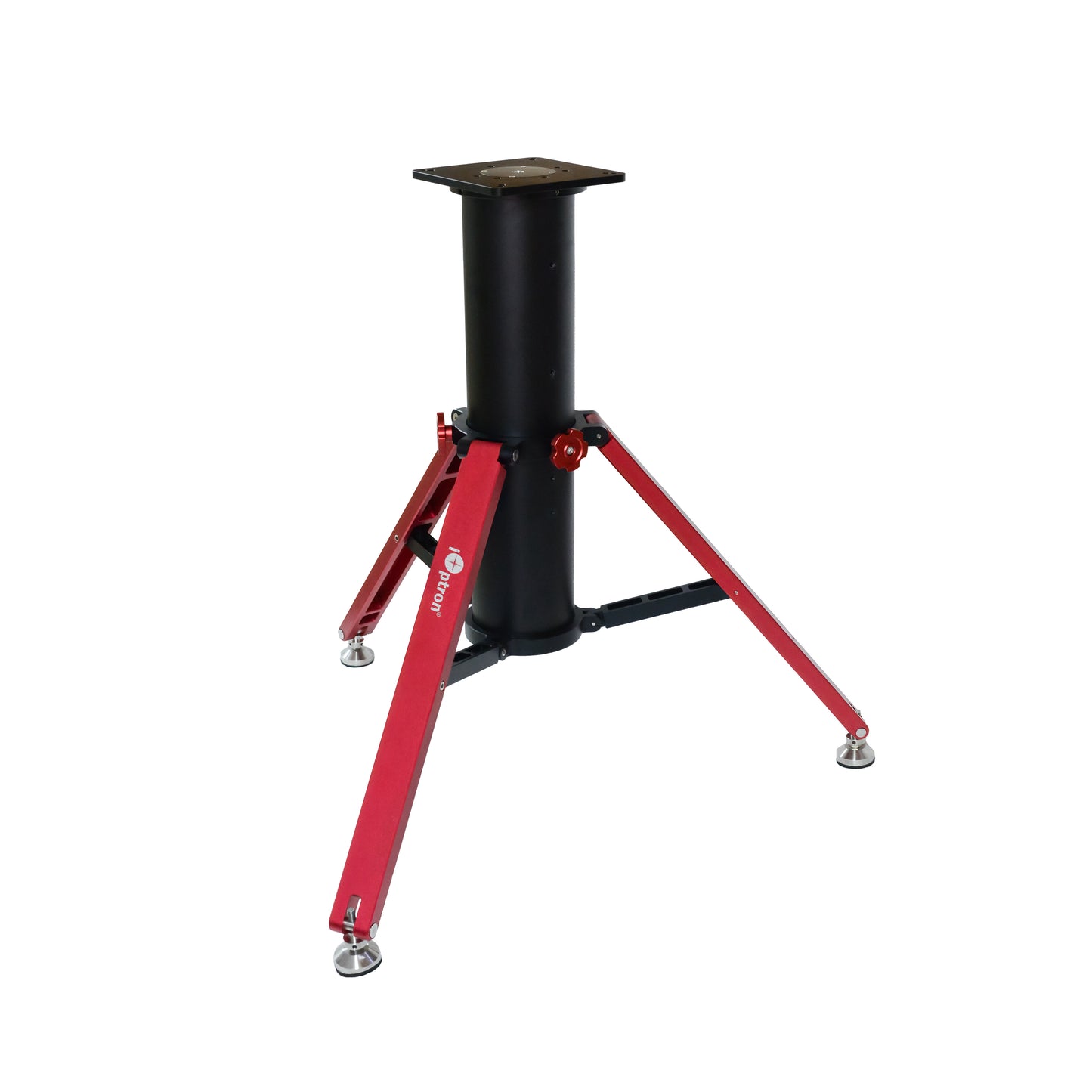

The iOptron heavy duty Tri-Pier 360 is designed for CEM120 mount. It combines the strength and stability of a pier with the levelling flexibility of a tripod. 1/4 inch thick aluminum alloy pier and CNC machined legs with adjustable feet.

The Tri-Pier 360 can also be used for the following mounts, directly or with an adapter:
  • CEM70
  • CEM60
  • iEQ45 Pro/iEQ45
  • AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
  • CEM40/GEM45 (need MiniPier 8032 or MiniPier top plate 8032PT)
  • Paramount MyT (no adapter needed)
  • Takahashi (EM-200), SkyWatcher (HEQ5/EQ6/NEQ6/AZEQ6), Celestron (CGEM/CGEM-DX), Orion Atlas (EQ-G/AZEQ-G) ( need Tri-Pier adapter 8036-TK)
  • Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
  • ZEQ25/CEM25 (need Tri-Pier adapter 8036-25)
  • Celestron CGX/CGX-L (need top plate 8039-CGX)
Specifications
 Max Payload
165 kg
Self Weight
13.9 kg
Material and Finish
Aluminum Alloy (CNC), anodized
Pier Diameter
150 mm
Pier Wall Thickness
5mm
Pier Top Plate
210mm X 210mm
Adjustable Height
860-1020 mm
Uneven Ground Range
51 mm
Leg Maximum Spread
Ø1050 mm
Pier Dimension (folded)
 Φ240x820 mm
Warranty
One year limited
